Case Study: Doral, Florida

Musty Odor Investigation Reveals Contamination Inside an HVAC System and Ductwork

A strong, persistent musty smell throughout a Doral home prompted an independent assessment. Inspection revealed significant visible contamination and suspected microbial growth inside the HVAC system, including the air handler, evaporator coil, internal insulation, plenum and ductwork.

Property LocationDoral, Florida

Inspection TypeResidential HVAC Mold Investigation

Primary ConcernPersistent musty odor throughout the home

Documentation16 original inspection photographs

Project Overview

Looking Beyond the Musty Smell in the House

Home Enviro evaluated the indoor environment and HVAC system after the homeowners described an unusually strong odor that persisted throughout the residence. The investigation focused on the air-handling equipment and ductwork rather than relying only on the appearance of accessible room surfaces. This case documents the observed conditions, their indoor-air-quality significance and recommended next steps.

Customer Concern

What Prompted the Call

The occupants reported a strong musty odor and recurring allergy-like symptoms while inside the home. Although an environmental assessment cannot determine the medical cause of these symptoms, the reported conditions were an important reason for evaluating the HVAC system and indoor environment.

The reported symptoms are part of the occupants' history, not a medical finding or evidence that mold caused illness. The purpose of the assessment was to document environmental conditions and identify areas needing further professional attention.

Reported Conditions

A very strong, persistent musty odor throughout the home
Recurring allergy-like symptoms reported by family members
Occupants reporting that they felt unwell while inside
Concerns about the home's indoor environment

Methodology

Inspection of the HVAC System and Ductwork

The evaluation included visible interior conditions around the air handler, blower compartment, evaporator coil, insulation, plenum and ductwork. Original photographs document these components and nearby supply-register surfaces. The inspection record also includes a photograph of surface swab collection; this article does not present laboratory findings.

Visual HVAC InspectionAir Handler & Blower ReviewEvaporator Coil InspectionPlenum & Ductwork EvaluationOriginal Photo Documentation

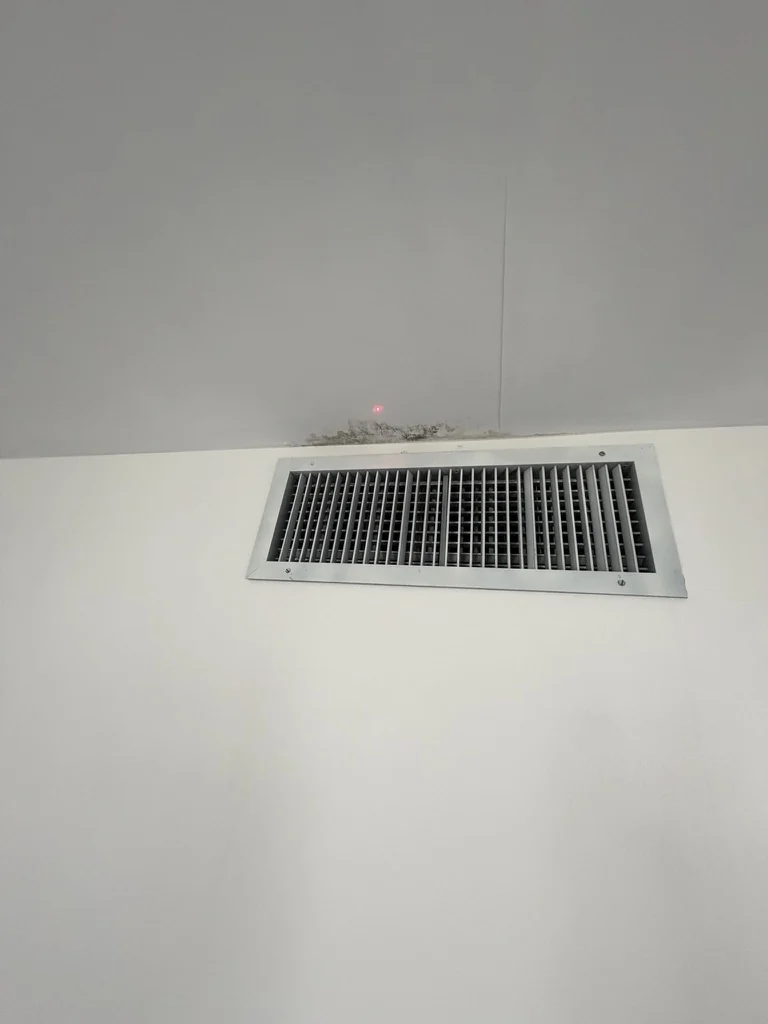

Visible discoloration above an air-conditioning supply grille — Discoloration near a supply grille was included in the inspection documentation.

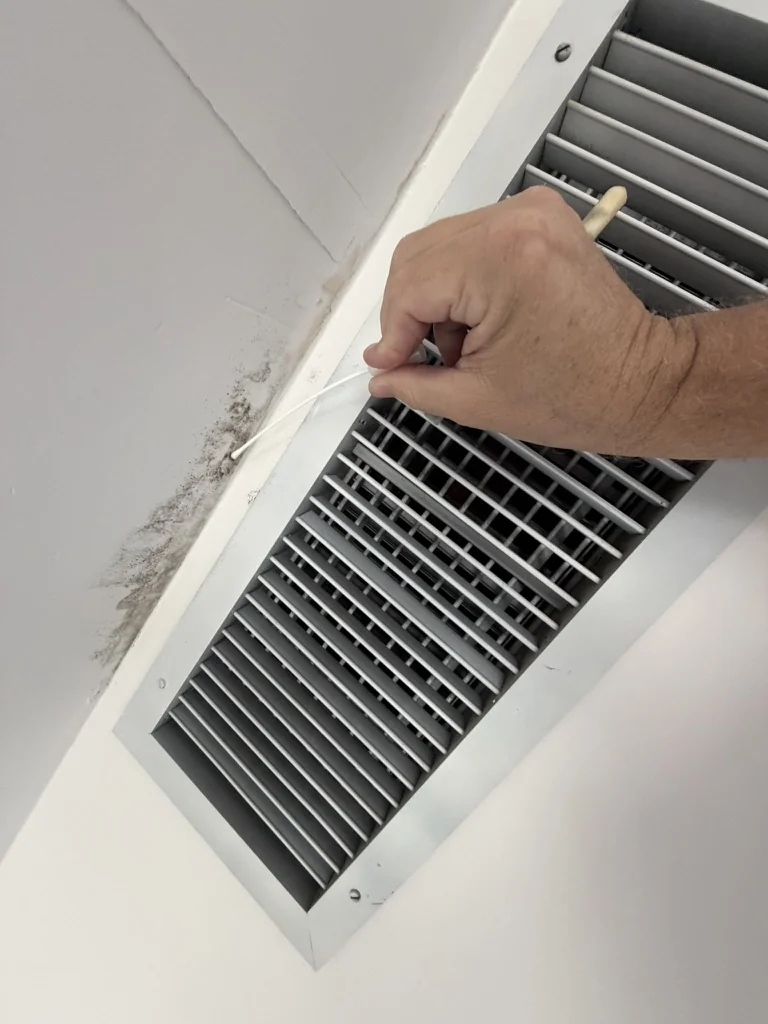

Inspector collecting a surface swab beside a discolored HVAC supply register — A surface swab collection is shown beside the register. No laboratory results or organism identification are presented in this case study.

Findings

Visible Contamination Across Multiple HVAC Components

Significant visible contamination and suspected microbial growth were observed within the system. The documented conditions were not limited to an exterior grille or a single accessible surface; they included concealed equipment and lined air-path surfaces.

Heavy visible contamination within the air-handler and blower areas
Accumulation and suspected microbial growth around the evaporator coil
Discoloration and deposits on internal HVAC insulation
Contamination on interior plenum surfaces and portions of the ductwork
Visible discoloration around photographed supply-register surfaces

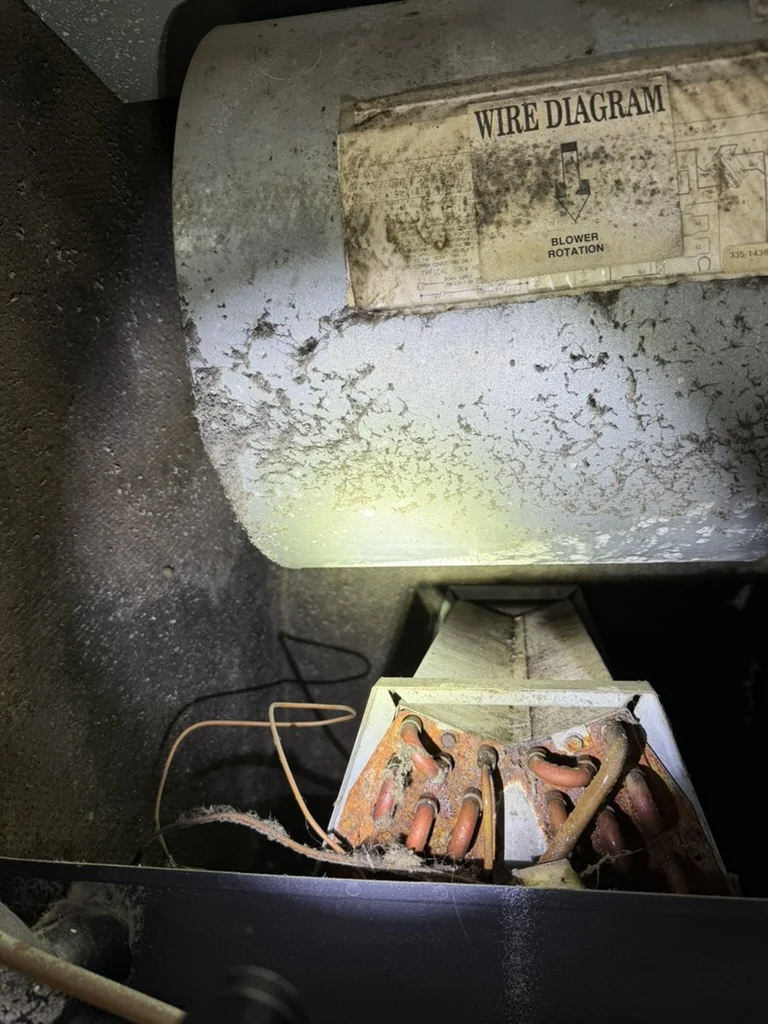

Heavy accumulation inside HVAC blower compartment above the evaporator coil — Visible contamination in the air-handler and blower area, with the evaporator coil below.

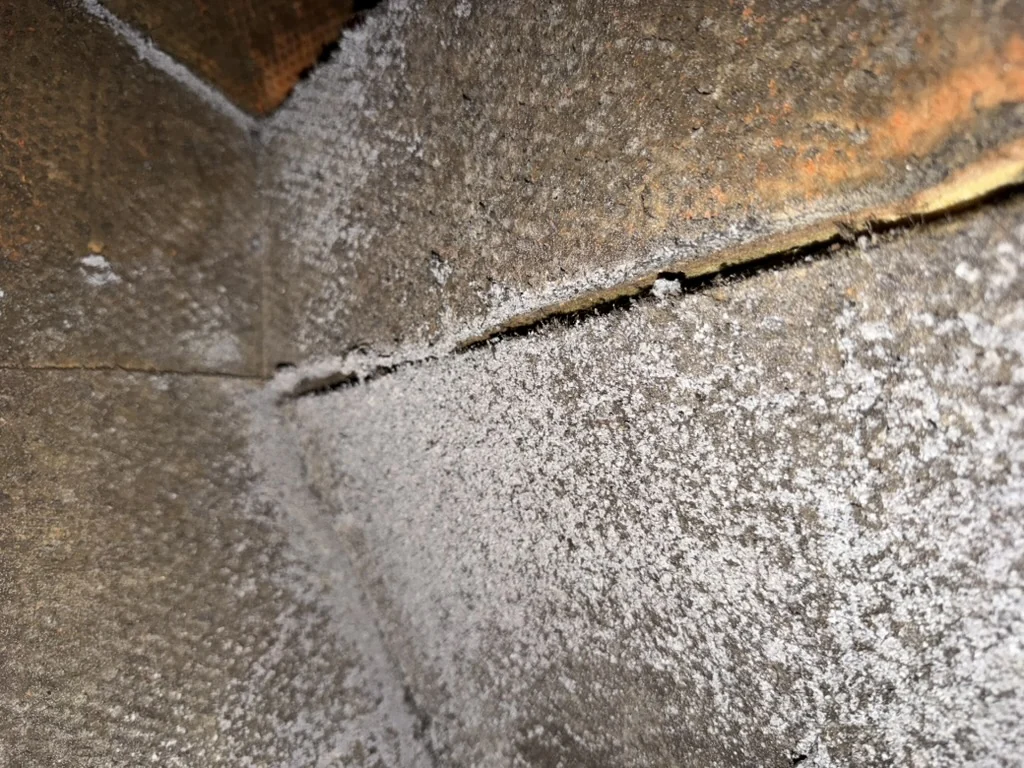

Dark deposits along an internal HVAC insulation seam — The close view documents extensive deposits along an interior insulated seam, without establishing a specific moisture source.

Why This Happens

Why HVAC Contamination Can Affect Indoor Air Quality

The HVAC system circulates air through equipment and ductwork before delivering it into living spaces. When internal components or duct surfaces are contaminated, operating airflow can carry odors and airborne particulate through the home. A persistent odor may therefore warrant evaluation inside the equipment even when room surfaces do not reveal the source.

Moisture and condensation conditions must also be evaluated. Cleaning alone may not provide a lasting solution if the conditions supporting microbial growth remain. The photographs document visible surface conditions, but do not establish a specific condensation mechanism, humidity level, water leak or measured rate of particle distribution in this home.

Visual Evidence Has Limits

Visible discoloration and suspected microbial growth are not a laboratory identification of mold species. This case does not provide exposure measurements or determine the medical cause of the occupants' reported symptoms.

Next Steps

Professional Recommendations

A qualified HVAC professional and, where appropriate, a qualified remediation contractor should determine the corrective scope. Home Enviro provides independent assessment, inspection and testing only, and does not perform remediation, cleaning, repair or replacement.

Arrange a professional evaluation of the affected air handler, blower, evaporator coil, internal insulation, plenum and ductwork.
Identify moisture or condensation conditions that may be contributing to contamination and correct them as part of the work.
Determine which components can be appropriately cleaned or remediated and which materials require repair or replacement.
Include concealed and lined HVAC components in the corrective evaluation, rather than addressing only visible registers or readily accessible surfaces.
Use the documented inspection findings to guide the appropriate professional scope, without assuming that appearance alone establishes species or health effects.

Original Photo Evidence

Documentation From the Field

These original Doral inspection photographs supplement the images shown above. Together, the 16 photographs document HVAC components, interior lining, ductwork and nearby register surfaces. Captions distinguish directly visible conditions from conclusions that photographs alone cannot establish.

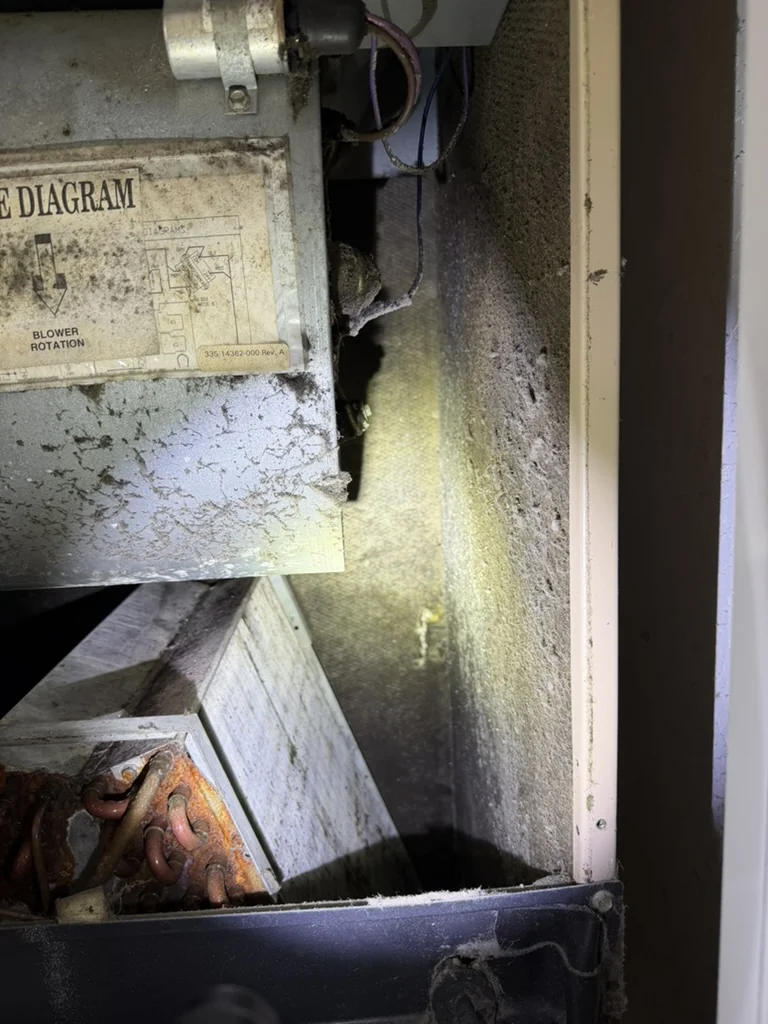

Suspected microbial growth inside residential HVAC air handler — Visible deposits inside the open air-handler cabinet, including the blower housing and adjoining insulation.

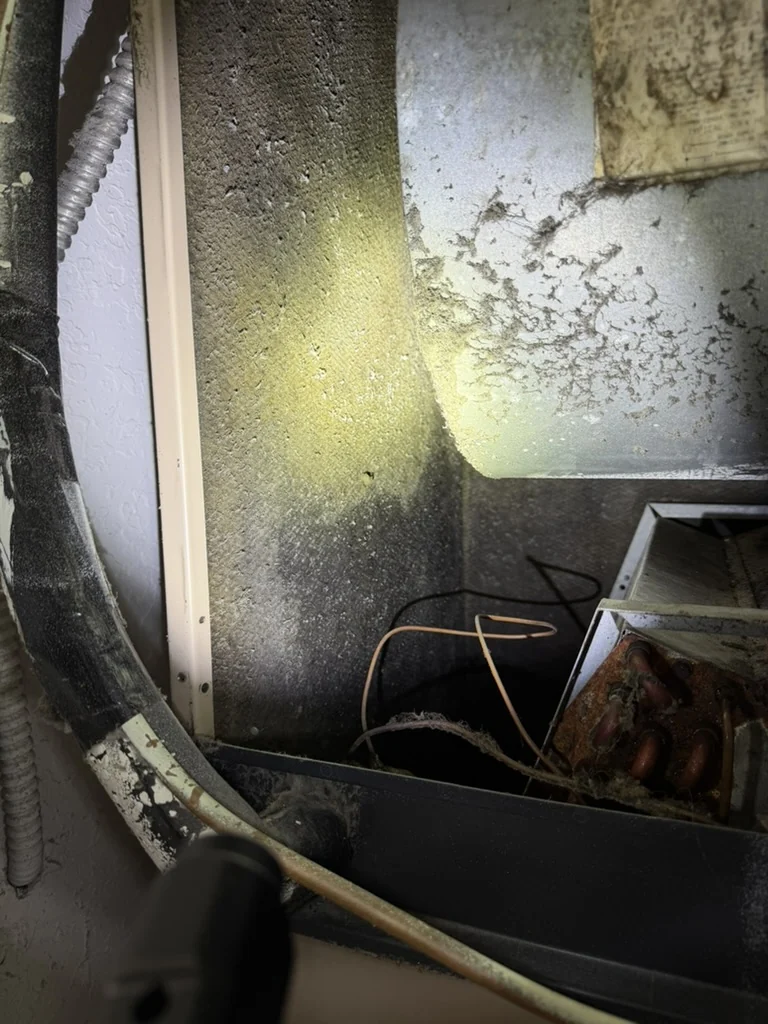

Contamination on internal insulation beside an HVAC blower housing — An alternate view documents the internal cabinet insulation beside the blower housing and coil assembly.

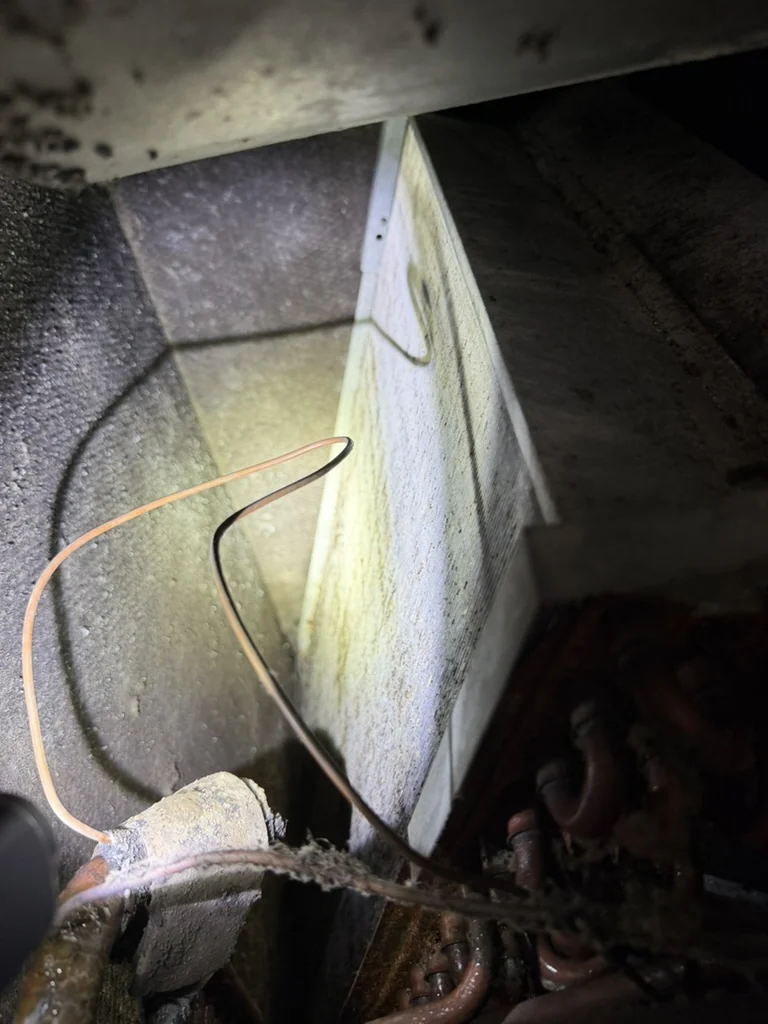

Visible contamination around HVAC evaporator coil and adjacent insulation — The side of the evaporator coil and adjoining insulated cabinet surface were included in the visual evaluation.

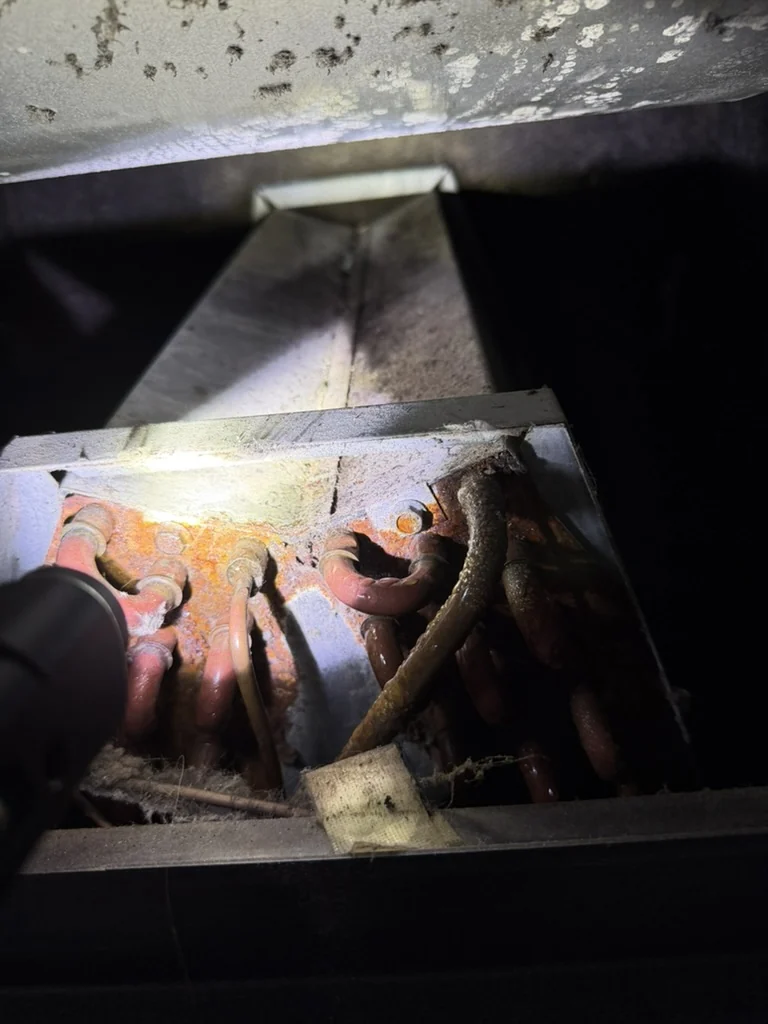

Deposits around evaporator coil tubing and the air-handler coil end plate — Coil tubing, the end plate and nearby housing surfaces show the areas documented during the assessment.

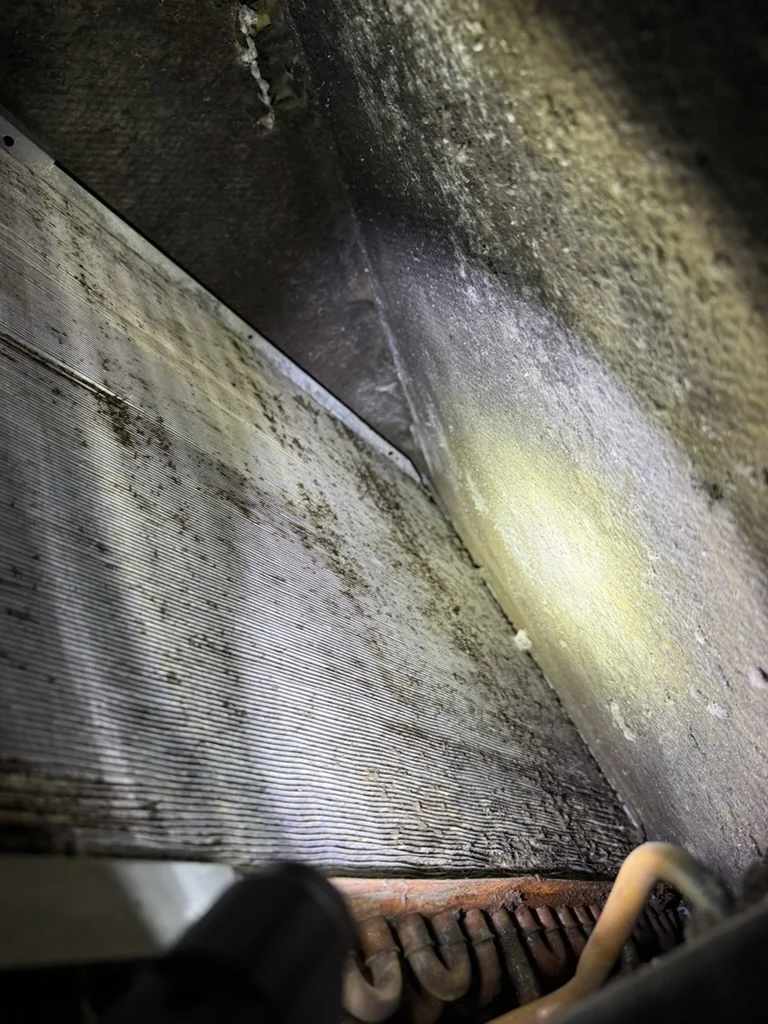

Accumulation on evaporator coil fins beside discolored HVAC insulation — Visible accumulation on coil fins and discoloration on the adjacent internal insulation.

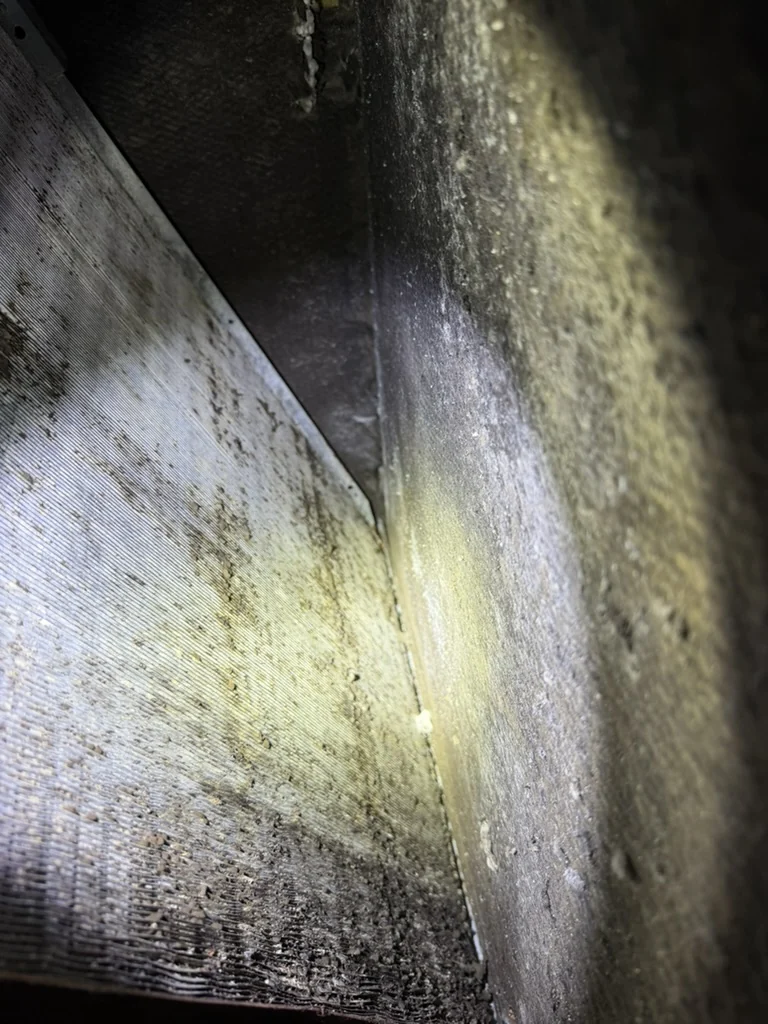

Close view of suspected microbial contamination on HVAC coil-side liner — A closer view of the coil-side liner and fins preserves detail of the observed surface conditions.

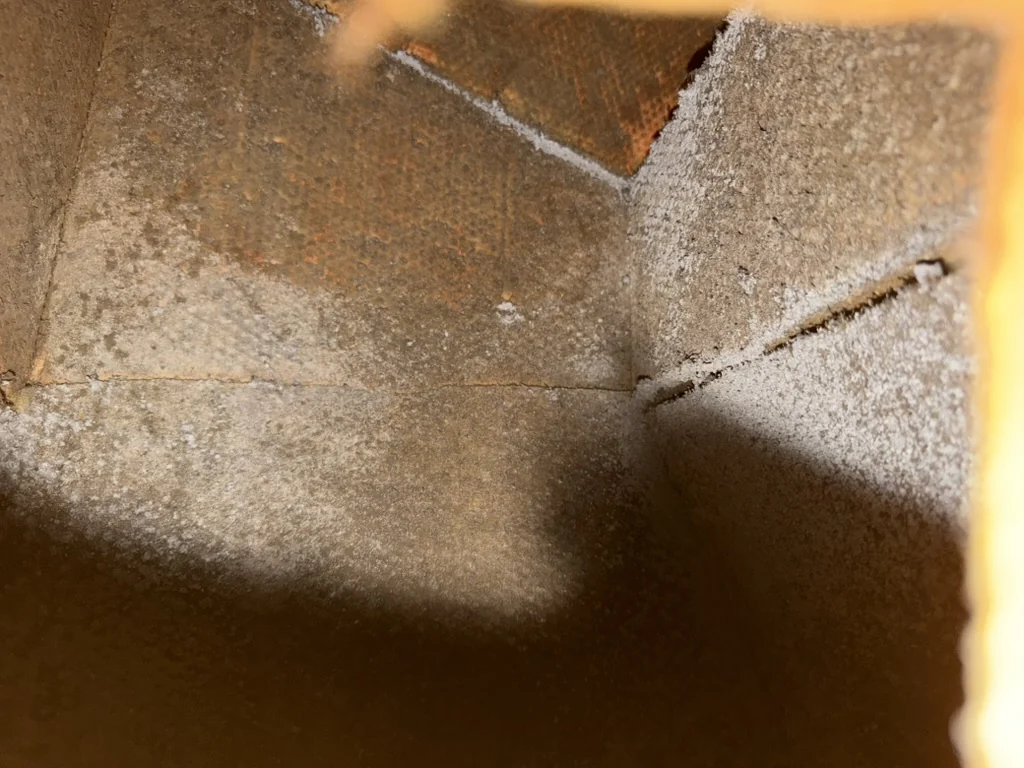

Suspected microbial contamination inside HVAC plenum — Deposits and discoloration on lined interior surfaces within the plenum and ductwork.

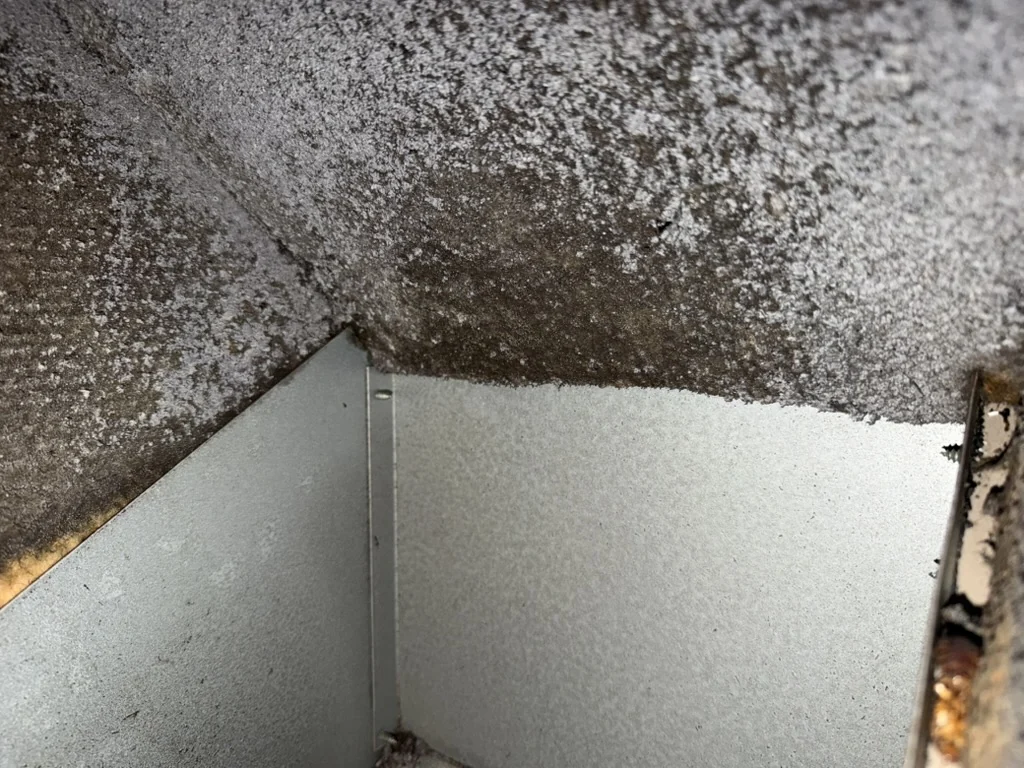

Interior ductwork contamination discovered during mold assessment in Doral — The transition between interior lining and sheet metal was photographed as part of the ductwork evaluation.

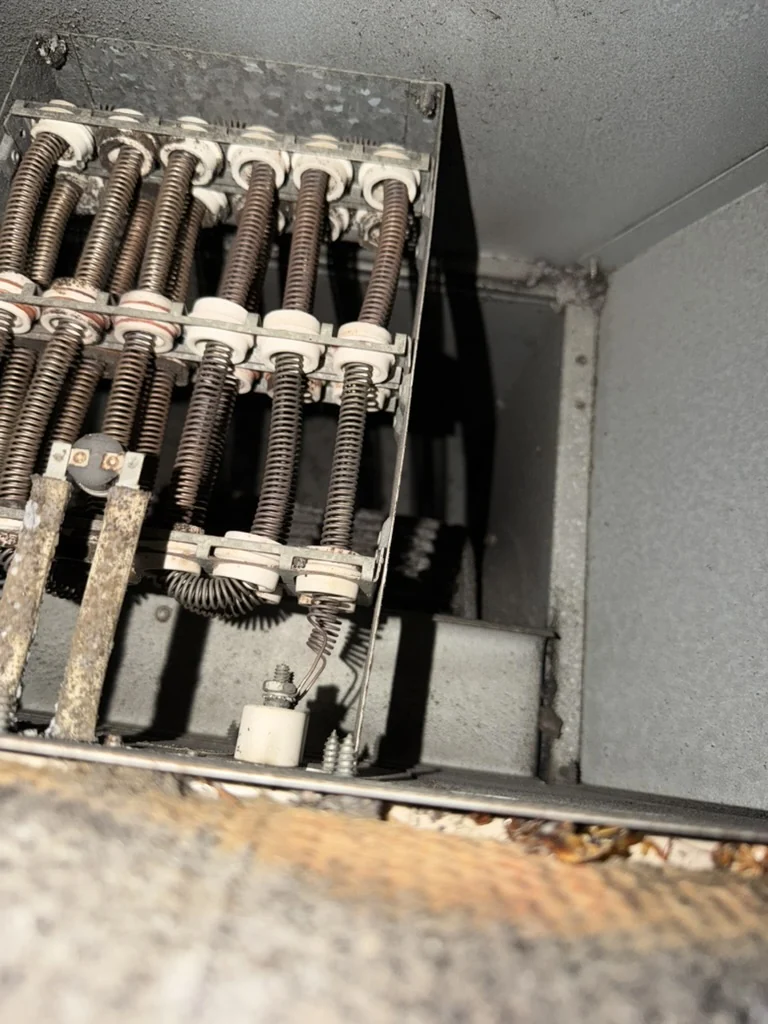

HVAC electric resistance heating elements and surrounding interior surfaces — Electric resistance heating elements and nearby cabinet surfaces. These components are distinct from the evaporator coil.

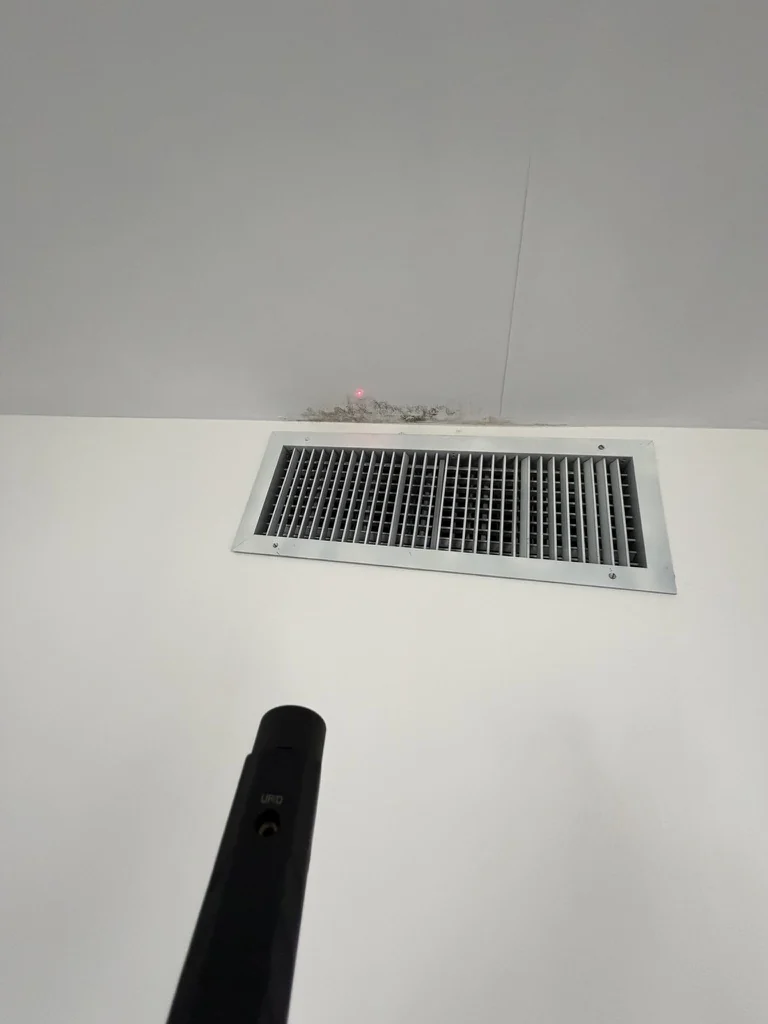

Discoloration around a residential HVAC supply register during inspection — A supply register and the surrounding wall and ceiling surfaces were visually documented.

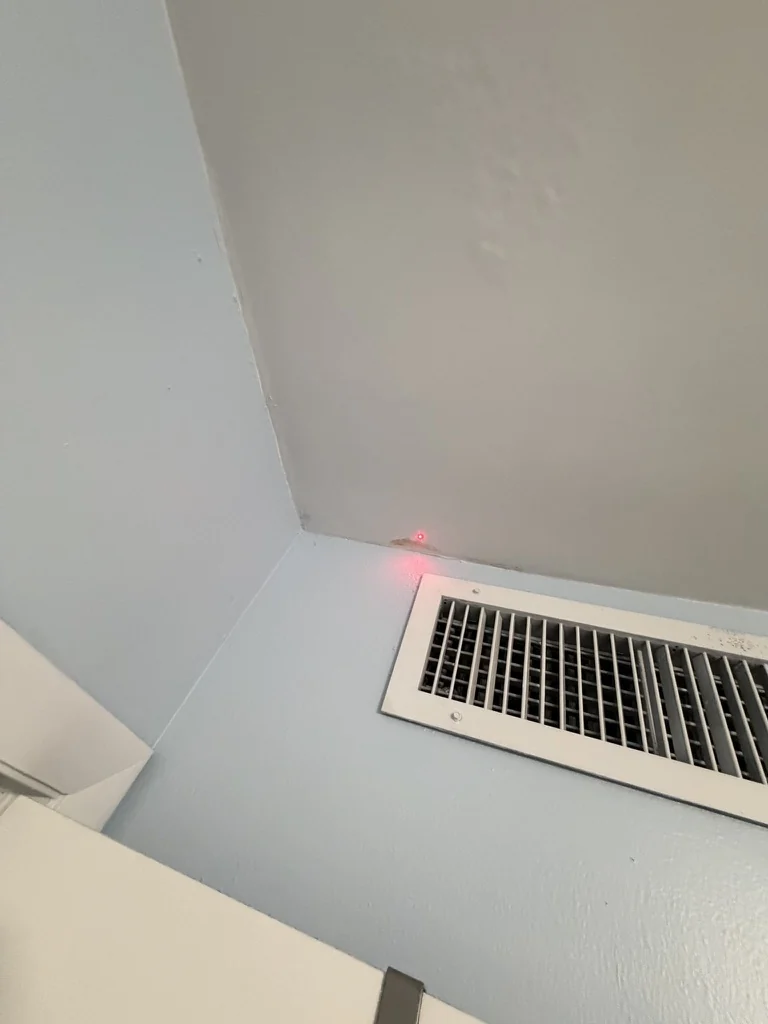

Localized discoloration at the wall and ceiling near an HVAC register — The wall and ceiling transition near the register shows localized discoloration; its cause is not established by the photograph alone.

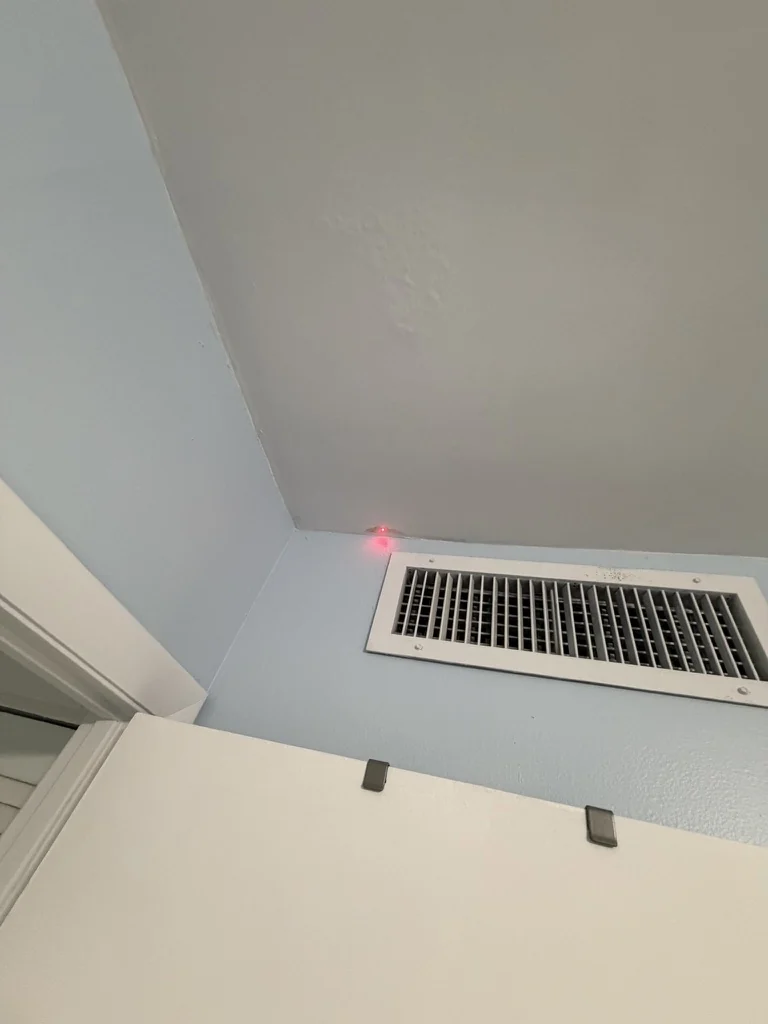

Wider view of an HVAC supply register and surrounding ceiling area — A wider view places the register and surrounding surfaces in context without identifying the property.

Why This Investigation Matters

A Persistent Odor Deserves a Look Inside the System

This investigation illustrates why concealed HVAC components matter when a home has persistent musty odors or indoor-air-quality concerns. An independent assessment documents what is present and helps homeowners obtain an appropriate corrective evaluation, without treating occupant symptoms as proof of environmental causation.
